Cement Hose with High Strength against Abrasion

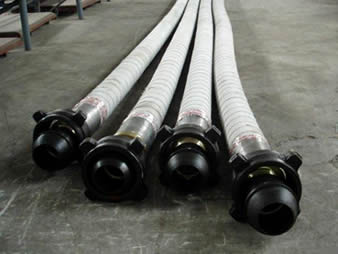

Several cement hoses are on the floor of a workshop.

Cement hose is used to transfer high pressure moist sand and concrete.

Cement hose is mainly used in a number of industries, such as oil & gas, petroleum and so on. It can carry the humid sand and concrete at very high pressure because its reinforcement is made from multiple high tensile steel wire spiral. It has the strength against abrasion and damage caused by the mixture of humid sand and concrete with high pressure, because it is made from abrasion-resistant synthetic rubber. What's more, its service life is very long for the adding of rubber antioxidants.

Details of cement hose:

Structure:
- Tube: abrasion and corrosion resistant synthetic rubber, mainly nitrile rubber.
- Reinforcement: multiply high strength steel wire spiral.
- Cover: ozone, weather, abrasion and oil resistant synthetic rubber.
Inner diameter: 1" - 6" (25.4mm - 152.0mm).
Outside diameter: 37mm - 174mm.
Working pressure: 10 bar.
Burst pressure: 30 bar.
Working temperature: -29°C - +82°C.

Our advantage:

The working pressure of drilling hose is designed based on the maximum working pressure of drilling machine. The minimum burst pressure of drilling hose is 2.5 times as high as the working pressure. Therefore, even though the pump breaks down, the drilling hose will not burst.
The tube of drilling hose is made from nitrile rubber, which can prevent the oil-based mud from permeating out of hose leading to the hose damage in the process of conveying the oil-based mud.
Our drilling hose is manufactured with integral connectors and the connectors are resistant to pull-off, which can avoid the connectors falling off and hurting the workers in the process of pressure test. And this feature improves the pressure resistance and safety performance of drilling hose greatly.

The specification of cement hose
Hose code	ID		OD	Working pressure	Burst pressure	Length
Hose code	Inch	mm	mm	Bar	Bar	m
CH-01	1.00	25.4	37	10	30	60
CH-02	1.25	31.8	44	10	30	60
CH-03	1.50	38.1	52	10	30	60
CH-04	2.00	51.0	65	10	30	60
CH-05	2.50	63.0	78	10	30	60
CH-06	3.00	76.0	93	10	30	60
CH-07	4.00	102.0	122	10	30	60
CH-08	5.00	127.0	149	10	30	40
CH-09	6.00	152.0	174	10	30	30

Application of cement hose:

Cement hose is mainly used in a number of industries, such as oil & gas, petroleum and so on.
It is used to carry moist sand and concrete at high pressure.

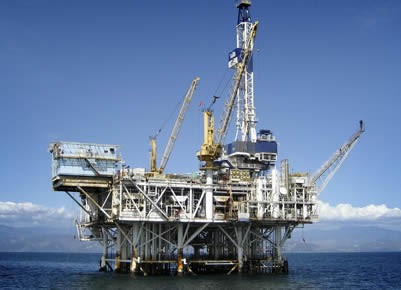

Cement hose can be used in oil & gas industry.

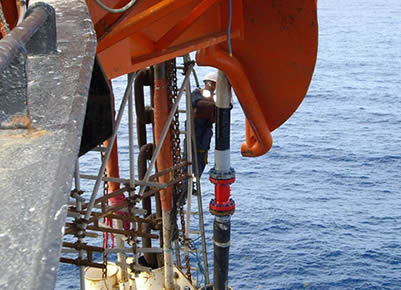

Cement hoses are installed on the petroleum equipment.

Cement hose can be used to carry moist sand and concrete in petroleum industry.

Inquiry for Our Product

Hebei Qianli Rubber Products Co., Ltd.
E-mail: rox@hebeiqianli.com

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
