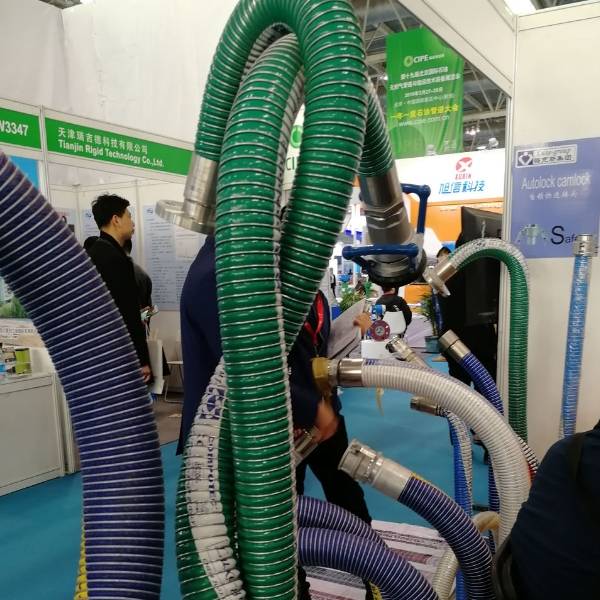

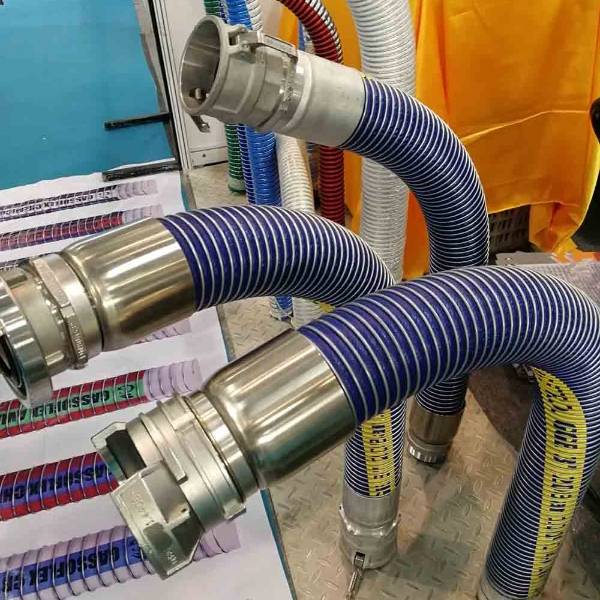

Suction and Discharge Composite Hose for Frequent Bent Mobile Use

Suction and discharge composite hose is soft and lightweight, and it is suitable for frequent bent mobile use. It has excellent antistatic performance. The hose is suitable for all fuel oil products, such as gasoline, diesel, crude oil, Liquefied Petroleum Gas (LPG), lubricating oil, ethanol gasoline and biodiesel. It is also suitable for the delivery of chemical fluids which are corrosive and aggressive.

Applications

• It is suitable for suction and discharge transfer of petroleum products in road and rail tanker.
• It is the best choice for handling distillates which are lightweight, including gasoline, aromatics, MTBE and MEK, and etc.
• It is suitable for Liquefied Petroleum Gas (LPG).
• It is suitable for cooking oil and vegetable oil.

Structure

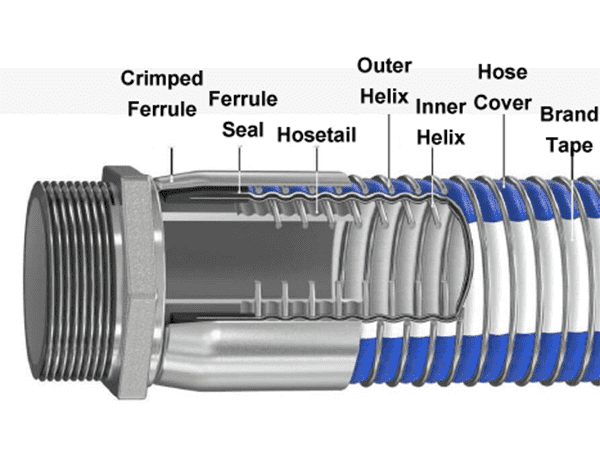

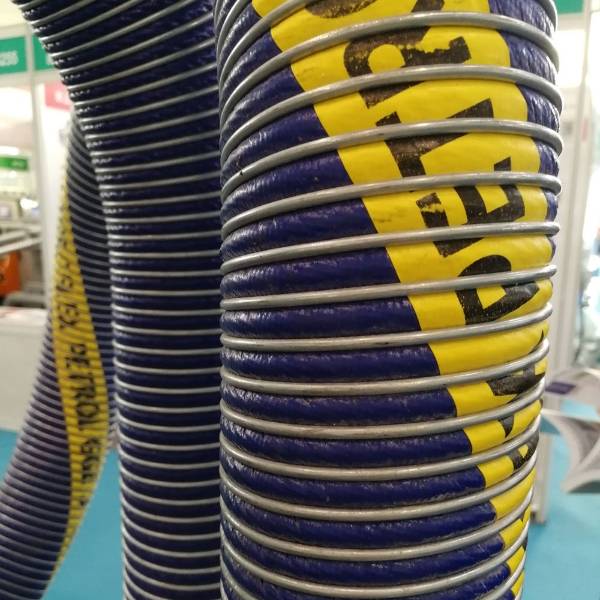

It is made from polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The inner wire is 316 stainless steel and is lined with layers of PTFE film. The outer wire is galvanized mild steel.

• Inner Wire: Galvanized steel, SS304 or SS316L.
• Outer Wire: High tensile galvanized steel, SS304 or SS316L.
• Cover: Polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover.
• Liner: Combination of multiple piles of polypropylene films and polyester vapor barriers.
• Color: Blue, red, yellow, black, white, green.
• Temperature Range: -40 °C to +110 °C

Specifications

Table 1: Specification of Suction and Discharge Composite Hose Light Duty 7 Bar

Bore Diameter		Working Pressure		Bend Radius		Weight	Length
inch	mm	bar	psi	inch	mm	kg/m	m
1"	28	7	100	4.9	125	0.85	20
1-1/2"	40	7	100	5.9	150	1.15	20
2"	50	7	100	7.9	200	1.3	20
2-1/2"	65	7	100	8.3	210	2.2	20
3"	80	7	100	11.8	300	2.7	20
4"	100	7	100	15.7	400	4.4	20

Table 2: Specification of Suction and Discharge Composite Hose Standard 10 Bar

Bore Diameter		Working Pressure		Bend Radius		Weight	Length
inch	mm	bar	psi	inch	mm	kg/m	m
1"	28	10	150	4.9	125	0.95	20
1-1/2"	40	10	150	5.9	150	1.7	20
2"	50	10	150	7.9	200	1.8	20
2-1/2"	65	10	150	8.3	210	2.9	20
3"	80	10	150	11.8	300	3.5	20
4"	100	10	150	15.7	400	5.5	20

Table 3: Specification of Suction and Discharge Composite Hose Heavy Duty 15 Bar

Bore Diameter		Working Pressure		Bend Radius		Weight	Length
inch	mm	bar	psi	inch	mm	kg/m	m
1"	28	15	225	5.9	150	1.2	20
1-1/2"	40	15	225	7.9	200	2.1	20
2"	50	15	225	8.3	210	2.5	20
2-1/2"	65	15	225	11.8	300	3.5	20
3"	80	15	225	13.8	350	4.5	20
4"	28	15	225	5.9	150	1.2	20
5"	150	15	225	20.1	510	9.7	20
6"	200	15	225	22.6	575	12.4	20
8"	200	15	225	31.5	800	21.8	20
10"	250	15	225	39.37	1000	26.7	20
12"	300	10	150	47.24	1200	32	18
