Fuel Oil Suction and Discharge Rubber Hose for Conveying Various Fuel Oils

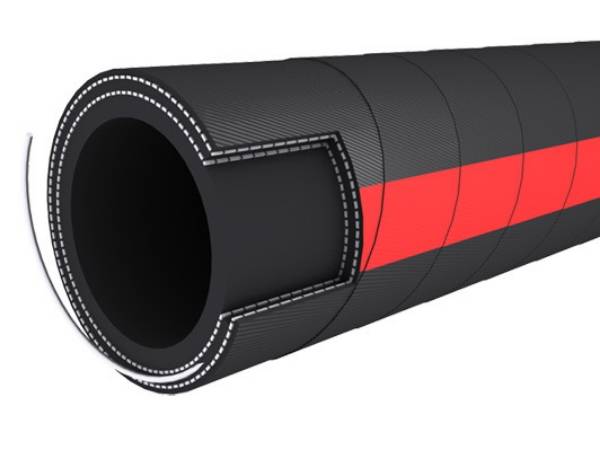

A black and red fuel oil suction and discharge rubber hose is displayed.

Fuel oil suction and discharge rubber hose is used to convey gasoline, diesel, kerosene, alcohol and other fuels. The hose can withstand the full vacuum, used for a wide range of Petroleum products up to 50% aromatic content.

Applications

The hose can be used to convey chemical liquids such as paint, ink, chemical solvent, nitric acid, sulfuric acid, alcohol and so on.

Structure

Inner Tube: Black, smooth, nitrile compound.
Reinforcement: High strength synthetic cord plus helix wire and anti-static copper wire.
Cover: Black, smooth (wrapped finish) high grade chloroprene rubber, compounded for an excellent resistance to weather, ozone, abrasion and oil.
Length of Coil: 61 meters (200 ft) continuous length; other length available on request.
Temperature Range -40 °C to +100 °C

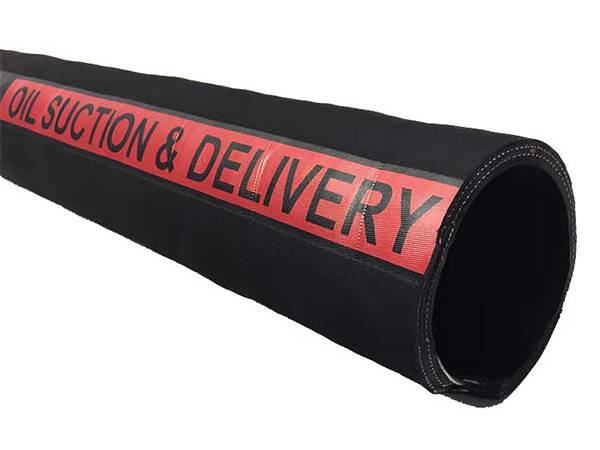

Branding: Red transfer tape with negative text.

Specifications

Inner Diameter		O.D.	Working Pressure		Bursting Pressure		Bending Radius	Weight
inch	mm	mm	bar	psi	bar	psi	mm	kg/m
1"	25	35	10	150	30	450	150	0.79
1-1/4"	32	42	10	150	30	450	192	0.97
1-1/2"	38	51	10	150	30	450	228	1.40
1-3/4"	45	57	10	150	30	450	266	1.43
2"	51	62	10	150	30	450	306	1.81
2-1/2"	63	77	10	150	30	450	378	2.28
3"	76	92	10	150	30	450	456	2.93
3-1/2"	90	104	10	150	30	450	540	3.46
4"	102	120	10	150	30	450	612	4.95
5"	127	147	10	150	30	450	762	6.60
6"	152	172	10	150	30	450	912	7.80
8"	203	227	10	150	30	450	1650	9.00
10"	254	282	10	150	30	450	2035	20.03
12"	305	341	10	150	30	450	2600	28.50
