Universal Chemical Rubber Hose for Conveying Various Chemical Liquids

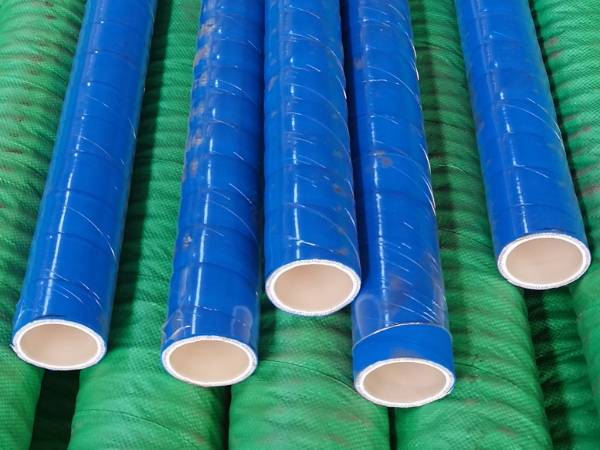

Many blue and green universal chemical rubber hoses are displayed.

Universal chemical rubber hose is used to convey chemical liquids such as alcohol, gasoline, benzene, acetone, paint, acidic solution, alkaline solution, etc. The hose can only withstand positive pressure, not negative pressure.

Applications

The hose can be used to convey chemical liquids such as paint, ink, chemical solvent, nitric acid, sulfuric acid, alcohol and so on.

Structure

Inner Tube: Smooth, translucent UPE.
Reinforcement: It consists of a high-strength synthetic core and a winding layer with several layers of metal wire.
Cover: Corrosion-resistant, ozone-resistant, abrasion-resistant specialty rubber.
Temperature Range: -40 °C to +120 °C

Specifications

Inner Diameter		O.D.	Working Pressure		Bursting Pressure		Weight
inch	mm	mm	bar	psi	bar	psi	kg/m
19/32"	15	25	10	150	40	600	0.35
25/32"	20	29	10	150	40	600	0.38
1"	25	29	10	150	40	600	0.40
1-3/16"	30	42	10	150	40	600	0.70
1-1/4"	32	42	10	150	40	600	0.75
1-1/2"	38	52	10	150	40	600	1.08
2"	51	64	10	150	40	600	1.3
3"	76	92	10	150	40	600	2.26
4"	102	121	10	150	40	600	3.63
5"	125	145	10	150	40	600	6.99
6"	152	174	10	150	40	600	8.99
