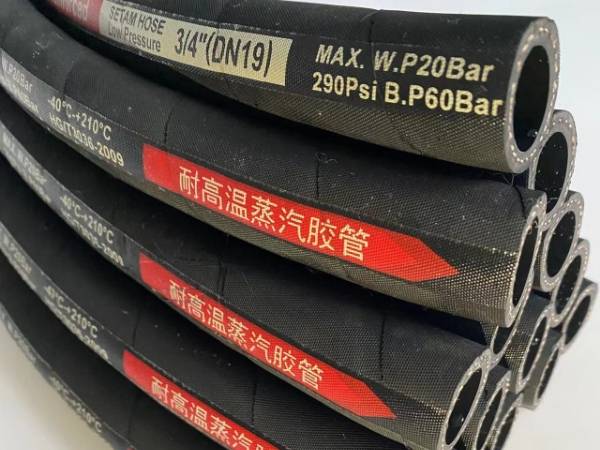

Steam Hose Fiber Braided for Saturated & Superheated Steam
Product: Steam hose 16 bar fiber braided
Brand: QIANFLEX
Size: 1/4" to 2"
Color: Black or customized
Applications: Saturated and superheated steam.
Temperature: -40 °C to +180 °C, intermittent to 220 °C
Structure
- Inner Tube: Black conductive EPDM.
- Reinforcement: High strength synthetic cord.
- Cover: Black special rubber compound – heat, abrasion, ozone and hydrocarbon resistant. The hose is pin pricked to prevent separation.
Specifications
| Inner Diameter | O.D. | Working Pressure | Bursting Pressure | Weight | |||
|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | kg/m |
| 1/4" | 6 | 14 | 16 | 232 | 64 | 930 | 0.14 |
| 5/16" | 8 | 16 | 16 | 232 | 64 | 930 | 0.20 |
| 3/8" | 10 | 18 | 16 | 232 | 64 | 930 | 0.21 |
| 1/2" | 13 | 21 | 16 | 232 | 64 | 930 | 0.37 |
| 5/8" | 16 | 26 | 16 | 232 | 64 | 930 | 0.43 |
| 3/4" | 19 | 29 | 16 | 232 | 64 | 930 | 0.47 |
| 7/8" | 22 | 32 | 16 | 232 | 64 | 930 | 0.50 |
| 1" | 25 | 35 | 16 | 232 | 64 | 930 | 0.59 |
| 1-1/4" | 32 | 42 | 16 | 232 | 64 | 930 | 0.95 |
| 1-1/2" | 38 | 48 | 16 | 232 | 64 | 930 | 1.11 |
| 1-3/4" | 45 | 55 | 16 | 232 | 64 | 930 | 1.45 |
| 2" | 51 | 61 | 16 | 232 | 64 | 930 | 1.71 |
