Water Suction and Discharge Hose for Delivery of Water & Other Neutral Liquids

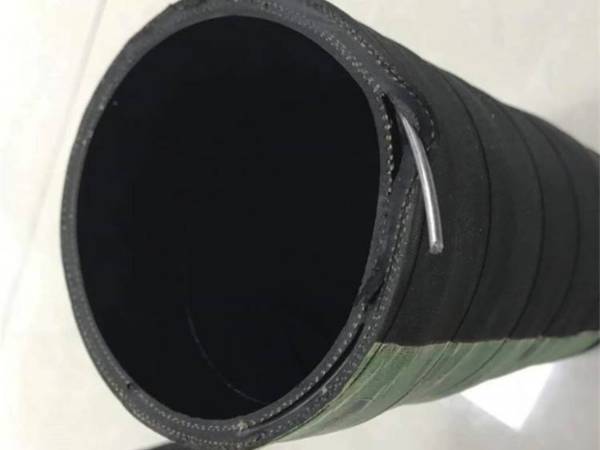

A black water suction and discharge hose

Water suction and discharge hose is applied for water suction and discharge operations, including delivery of water and other neutral liquids at normal temperature in industry mining, agriculture, construction work, parks and home daily life. We can change the formula of the inner tube rubber to obtain oil resistance and abrasion resistance. So that it can transport oil-water mixtures, slurries and other materials.

Structure

Tube: SBR black, smooth, resistant to waste water from 5 to 10 PH.
Reinforcement: High tensile textile cord, steel helix.
Cover: SBR black, smooth with cloth impression, weather, ozone and abrasion resistant.
Working temperature: -32 °C to +93 °C (-25.6 °F to +199.4 °F)
Light Weight. Only 30% of the weight of steel pipes.
Safety factor: 3:1

Specifications

WATER SUCTION AND DISCHARGE HOSE TECHNICAL SPECIFICATION
Inner Diameter		O.D.	Max W.P		Min B.P		Min B.R		Vacuum	Weight
inch	mm	mm	bar	psi	bar	psi	inch	mm	bar	kg/m
3/4"	19	27	20	290	60	870	2	51	-0.9	0.5
1"	25	34	20	290	60	870	2	51	-0.9	0.6
1-1/4"	32	41	20	290	60	870	4	102	-0.9	0.8
1-1/2"	38	47	20	290	60	870	4	102	-0.9	1
2"	51	63	20	290	60	870	7	204	-0.9	1.6
2-1/2"	64	73	20	290	60	870	10	255	-0.9	2.3
3"	76	87	20	290	60	870	14	356	-0.9	2.8
3-1/2"	90	100	20	290	60	870	14	356	-0.9	3.1
4"	101	113	20	290	60	870	18	457	-0.9	3.5
5"	127	141	15	225	45	675	20	510	-0.9	5.1
6"	152	169	15	225	45	675	24	760	-0.9	7.3
8"	203	222	15	225	45	675	48	1200	-0.9	13.5
10"	253	264	15	225	45	675	60	1500	-0.9	23.4
12"	305	332	15	225	45	675	72	1800	-0.9	28.4
16"	405	436	15	225	45	675	80	2000	-0.9	30.5
18"	457	487	15	225	45	675	90	2300	-0.9	34.0

Product Display

Many blue water suction and discharge hoses are placed on the ground.

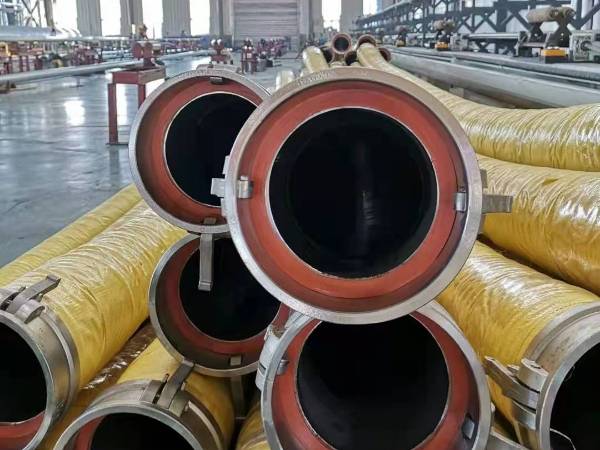

Many large diameter water suction and discharge hoses are displayed.

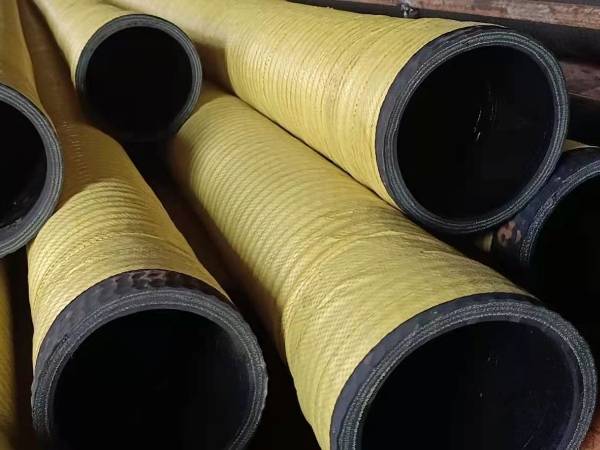

Yellow water suction and discharge hose with a black inner tube
