Mud Suction and Discharge Hose for Delivery of Mud, Slurry & Other Abrasive Materials

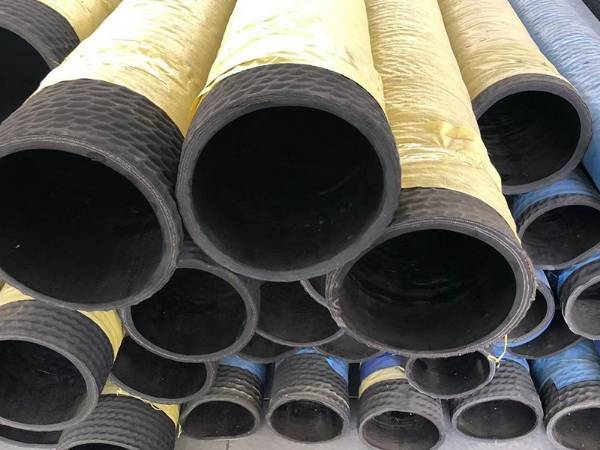

Many yellow mud suction and discharge hoses are placed on the ground.

Mud suction and discharge hose is widely used in industry, construction, agriculture and other fields. The rubber hose is used to convey mortar, mud, concrete, sand, slurry, pulverized coal or other abrasive materials. The inner tube of the hose is a special abrasion-resistant rubber formulation, while its thickness is thickened. This makes the hose characterized by a long service life.

Our hoses are exported in large quantities to Africa and are used by mining companies to transport mineral sands. This hose has won unanimous praise from African customers because of its cheap price and super good quality.

Structure

Tube: Natural wear-resistant rubber black, smooth.
Reinforcement: High tensile textile cord, steel helix.
Cover: Black conductive SBR/NR, weather, abrasion and ozone resistant.
Working temperature: -25 °C to +70 °C
Light Weight. Only 30% of the weight of steel pipes.
Safety factor: 3:1

Specifications

Inner Diameter		O.D.	Max W.P		Min B.P
Inch	mm	mm	bar	psi	bar	psi
2"	51	63	12	175	36	525
2-1/2"	64	75	12	175	36	525
3"	76	92	12	175	36	525
4"	102	121	12	175	36	525
5"	127	148	12	175	36	525
6"	152	182	12	175	36	525
8"	203	233	12	175	36	525
10"	254	284	10	150	30	450
12"	304	340	10	150	30	450
14"	350	390	10	150	30	450
16"	400	430	7	100	21	300
18"	450	486	7	100	21	300
22"	550	590	7	100	21	300
24"	600	640	7	100	21	300
28"	700	750	7	100	21	300
32"	800	850	5	75	15	225
40"	1000	1050	5	75	15	225

Product Display

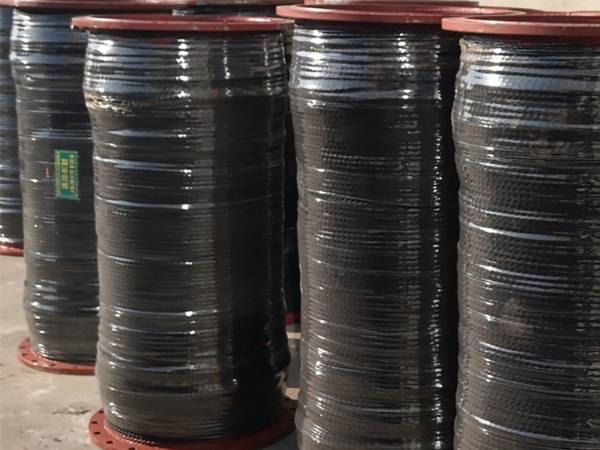

Mud suction and discharge hoses are well packaged and placed on the ground.

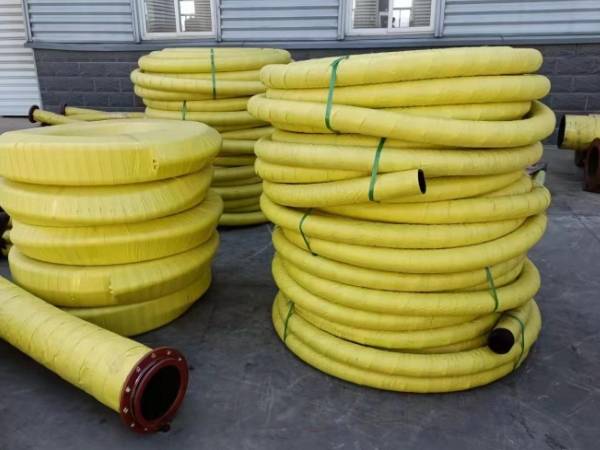

Mud suction and discharge hoses are made into rolls.
