Steam Hose Steel Braided for Saturated & Superheated Steam

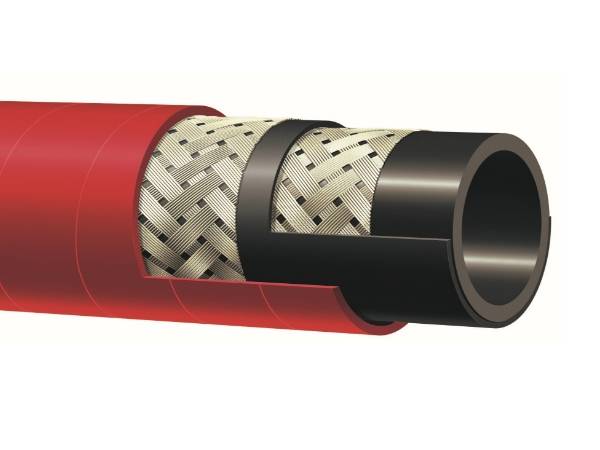

A red steel braided steam hose is displayed.

High pressure wire reinforced steam hose is designed for service with superheated steam in heat control, fire prevention etc. in many industries at max pressure 18 atm (270psi).

Applications

Saturated and superheated steam.

Structure

Inner Tube: Black conductive EPDM.
Reinforcement: One or two high tensile steel wire braids.
Cover: Red special rubber compound – heat, abrasion, ozone and hydrocarbon resistant. The hose is pin pricked to prevent separation.
Temperature Range: -40 °C to +210 °C, intermittent to 232 °C.

Specifications

Inner Diameter		O.D.	Working Pressure		Bursting Pressure		B.R.	Weight
inch	mm	mm	bar	psi	bar	psi	mm	kg/m
1/2"	13	25	18	270	180	2610	91	0.53
3/4"	19	32	18	270	180	2610	133	0.68
1"	25	39	18	270	180	2610	175	0.90
1-1/4"	32	46	18	270	180	2610	224	1.30
1-1/2"	38	54	18	270	180	2610	266	1.60
2"	51	67	18	270	180	2610	357	2.20
2-1/2"	63	83	18	270	180	2610	445	3.80
3"	76	95	18	270	180	2610	532	4.66
4"	102	124	18	270	180	2610	714	6.50
