Reducing Rubber Hose with Long-Distance Diameter Change

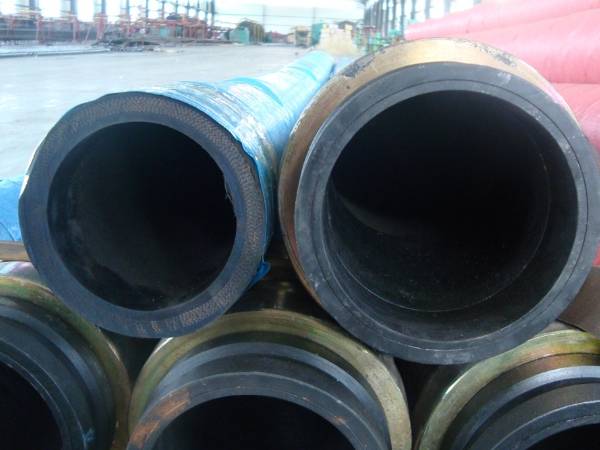

The cross section of reducing rubber hose for concrete is displayed.

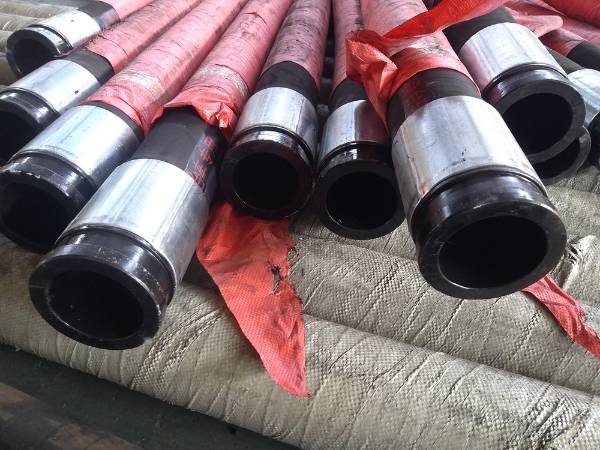

Many reducing rubber hoses for concrete are displayed.

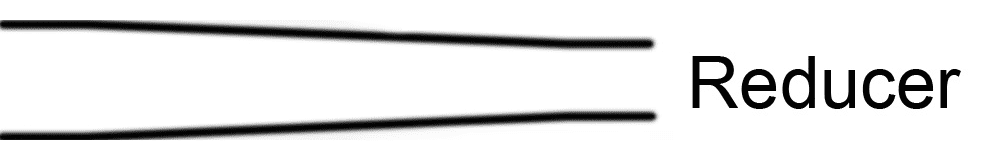

The drawing of reducing rubber hose diameter changes

Applications

Concrete, mortar, mud and other viscous materials.

Advantages

Long-distance diameter change, eliminating the possibility of pipe blockage when changing sharply, and the outer diameter of the reducer end is small, which is more convenient to operate.

Structure

Inner Tube: High wear resistance natural rubber and butadiene rubber.
Reinforcement: High strength polyester wire is used as the skeleton layer, with small bending radius and light weight.
Cover: Resistant to aging neoprene rubber.

Specifications

Specification	One End ID	One End OD	Another End ID	Another End OD	Cord Ply	Working Pressure	Weight
Specification	mm	mm	mm	mm	layer	bar	kg/4m
5" to 4"	127	162	102	134	8	85	29
5" to 3.5"	127	162	89	121	8	85	27.5
5" to 3"	127	162	76	108	8	85	27
4" to 3"	102	135	76	108	8	85	25.5
4" to 3.5"	102	135	89	121	8	85	24

Inquiry for Our Product

Hebei Qianli Rubber Products Co., Ltd.
E-mail: rox@hebeiqianli.com

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
